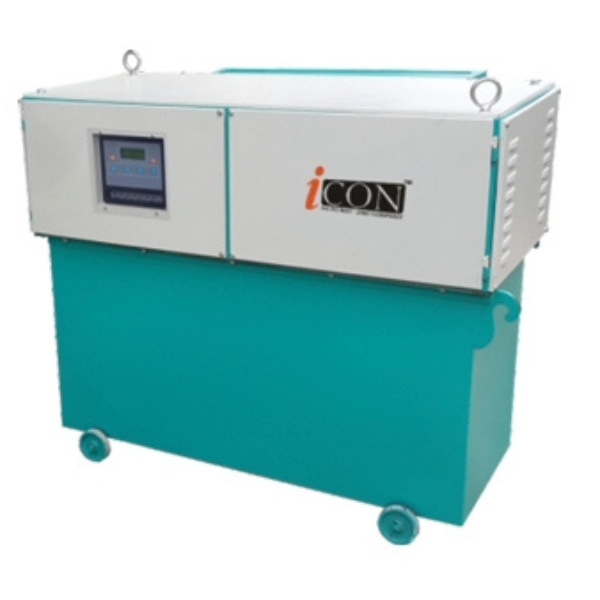

Branded Product at affordable price.
Special Design for Motor Loads like Lifts,
Textile Industry Machine etc.
Components Sourced From Companies having ISO
9001 / ISO 14001 / CE / UL etc. Certification.
Five Star Quality.
High grade C.R.G.O. Lamination and electrolytic grade
copper wires of 99.99% purify for variable
transformers.
| Capacity | 1 KVA to 1000 KVA |
| Input Voltage | 170-270 V AC Single Phase (or as per requirement) 340-480 V AC Three Phase (or as per requirement) |
| Operating Frequency | 47 - 53 Hz. |
| Output Voltage Adjustable | 220-240 V AC in Single Phase 380-415 V AC in Three Phase |
| Output Voltage Regulation | +1% |
| Waveform Distortion Nil | Nil |
| Output Waveform CON | True reproduction of Input |
| Ambient Temperature | 0℃ to 45℃ |
| Relative Humidity | 90% Rh Max. Non condensing at 35℃ |
| Mode of system | Fully automatic / manual |
| System Construction | Air Cooled / Oil Cooled |
| Protections | Low voltage protection High voltage protection Overload protection with MCB / MCCB Short Circuit protection From Single Phasing preventer |
| Panel Controls | Input / Output select switch Power Auto / Manual select switch Increase / decrease switch to control the output voltage in manual mode |
| Panel Indications | Input - On Output - On Input -Low Input -High Trip |
| Panel Meters | Voltmeter with Selector Switch to read Input / Output Voltages Ammeter with Selector Switch (From 15 KVA 3 Phase onwards) |
